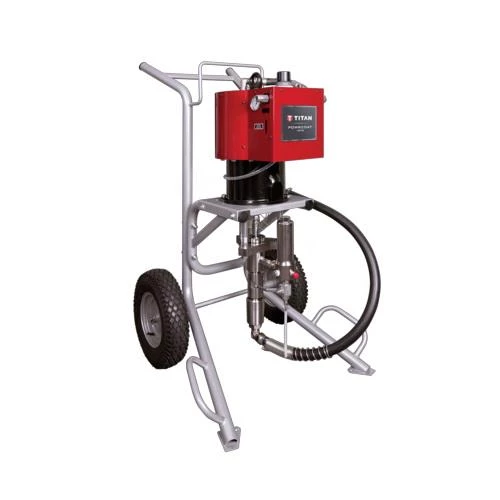

Titan PowrCoat™ 1072 Air Powered Spray

PowrCoat™ 1072 Air Powered Spray

POWRCOAT™ sprayers are great for virtually any application, including architectural, finishing, industrial maintenace, corrosion control, cold applied roofing, waterproofing, and marine protective coatings.

Spray Features

• Severe Service: Hard-chrome polished piston and cylinders give long life.
• Tungsten carbide valve seats with hardened steel check balls provide better performance and durability.
• PowrCoat™ piston is engineered to provide unmatched chemical and solvent resistance while creating an ultra-smooth surface that operates with a smooth stroke that provides less friction and wear.
• Pumps are designed for easy application of today’s low-VOC, high solids, and abrasive coatings.
• Aircare System: Complete FRL (Filter, Regulator, Lubricator) standard with every PowrCoat. Eliminates motor icing.
• Automatic draining moisture trap. Easy access air filter & lubrication reservoir.

Spray Specifications

• Air Motor Diameter: 10
• Ratio: 72:1
• Stroke Length: 4.75″
• Max Operation Pressure: 7200 PSI
• Max Air Input Pressure: 100 PSI
• Approximate Air Requirement: 64.9 SCFM
• Max Recommended Air Volume Requirements: 175 CFM
• Fluid Output Recycle: 167 CC

Click Here To Download The PowrCoat™ 1072 User Manual
